Attributes
- Radar Type: Dome
- Size: 20 Inch Dome
- Range: 46 Nautical Miles
- Rotation Speed: 60 RPM
- Power Output: 20 Watt
- Dimension: 20 Inch Diameter X 8.8 inch Height
- Input Voltage: 10.5 To 31.2 Volt
- Beam Width: 4.9 Degree Horizontal/ 25 Degree Horizontal
- Color: White
- Waterproof Rating: IPX6 Rating Waterproof
- Includes: With 10 Meter Cable
Features & Benefits
- 36 Nm Range From A Compact 20 Inch Dome
- Advanced Pulse Compression Technology With Beam Sharpening
- Simultaneous Dual Range Operation Sees Both Near And Far
- Ultra-Fast 60 RPM Operation At Ranges Up To 1-1/2 Nm
- VelocityTrack ™ Doppler Technology For Collision Avoidance
- MARPA Target Tracking: Up To 10 Targets, 20 In Dual Range
- Ready Instantly From Standby
- Easy Operation With Harbour, Offshore, Weather, And Bird Modes
- Limited 2 Year Warranty
Product Description

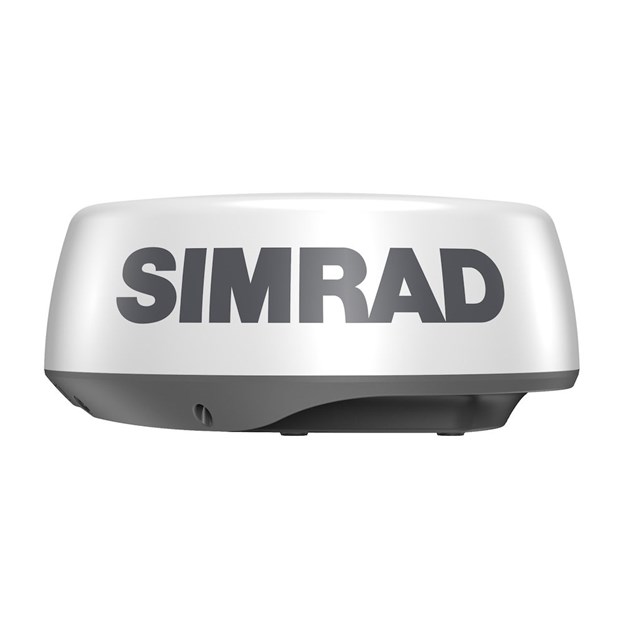

HALO20+ delivers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Identify hazards in an instant with VelocityTrack ™ Doppler technology, and enjoy simultaneous short and long-range coverage: up to 36 nautical Mile: from a compact 20 Inch dome antenna. See Near and Far with One Compact Dome: Perfect for a wide range of coastal bay boats, HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode which enables you to keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets. The Ultimate View for Collision Avoidance: HALO20+ radar delivers a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1.5 Nautical Mile. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets.
For product documentation and manuals visit here:
