Attributes
- Radar Type: Radome
- Size: 20 Inch Dome
- Range: 36 Nautical Miles
- Rotation Speed: 60 RPM
- Dimension: 20 Inch Diameter X 8.8 inch Height
- Input Voltage: 10.5 To 31.2 Volt
- 29 Watt Power Consumption
- Beam Width: 4.9 Degree Horizontal/ 25 Degree Vertical
- Color: White
- Certification: FCC/ Part 47 CFR 80 and 90: RED/ Article 3 Of Directive 99/5/ EC: CE: EN/ EN302-248 V2.1.1/ RSS238: RCM (C-Tick): IEC60945 Sec 9.2/9.3/10.3-10.9/ 11.2: IEC60950 Electrical Safety
- -25 Degree To +55 Degree Celsius Operating Temperature
- Waterproof Rating: IPX6 Waterproof
- Includes: With 20 Meter Cable
Features & Benefits
- 36 Newton Meter Range From A Compact 20 Inch Dome
- Advanced Pulse Compression Technology With Beam Sharpening
- Simultaneous Dual Range Operation Sees Both Far And Near
- Ultra-Fast 60 RPM Operation At Ranges Up To 1-1/2 Newton Meter
- VelocityTrack™ Doppler Technology To Avoid Collision
- MARPA Target Tracking
- Ready Instantly From Standby
- Low Power Consumption
- Easy Operation With Harbor, Offshore, Weather And Custom Modes
- Limited 2 Year Warranty

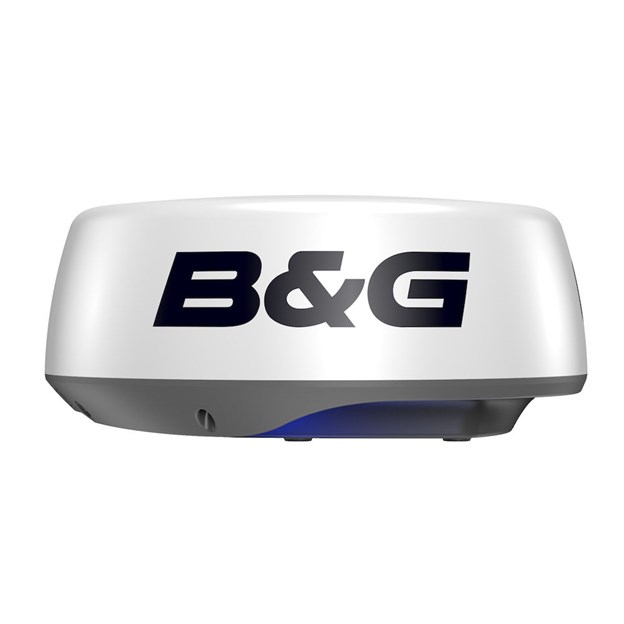

Product Description
HALO20+ delivers an almost real-time view, with industry-leading 60 RPM operation at close range for the ultimate in collision avoidance. Pinpoint hazards in an instant with VelocityTrack™ Doppler technology, and enjoy simultaneous short and long-range coverage—up to 36 nautical miles—from a compact 20 Inch dome antenna. Perfect for a wide mid-sized to large sailboats, HALO20+ comes in a compact 20 Inch dome antenna and delivers high-quality short, mid and long-range detection. Monitor two distance ranges at once in Dual Range mode so you can keep an eye on far away weather cells while watching for collision hazards up close. HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets. HALO20+ radar does a full 360 degree sweep every second, thanks to its industry-first 60 RPM rotation at ranges up to 1-1/2 nautical miles. These ultra-fast updates give you an almost real-time view at close range, offering the ultimate view for collision avoidance of fast moving targets. VelocityTrack™ technology grands instant visual feedback on whether targets are coming towards you or moving away with color-coding approaching vessels for high visibility while de-emphasizing diverging targets, increasing situational awareness and decreasing the risk of collision. HALO20+ radar automatically checks every target in range; there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
For product documentation and manuals visit here:
