Attributes
- Display Size: 12 Inch
- Display Resolution: 1280 X 800 Pixels
- Overall Dimensions: 13.68 Inch Width X 9 Inch Height x 3.26 Inch Depth
- Sonar Compatibility: ActiveTarget® 2 Live Sonar
- With Built-In GPS: Yes
- Mount Type: Dash Flush Mount/ Gimbal Bracket Mount
- With Transducer: Yes
- Used To: Find Fish And Quickly Locate Prime Fishing Areas With Preloaded C-MAP® DISCOVER On Board Charts
- Interface: Touchscreen
- Waterproof: IPX7 Rating Waterproof
- Power Supply Voltage: 12 Volt
- Ampere Rating: 3.6 Amp
- Weight: 5.76 Pound
- Screen Brightness: 1200 Nits
- Viewing Angle: 80 Degree Top/ Bottom, 80 Degree Left/ Right
- SD Card Storage: Micro SD Card
- Fuse Rating: 5 Amp
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
- Compass Safe: 2.1 Feet
Features & Benefits
- SolarMAX ™ HD Touchscreen Viewable At Extreme Angles And Through Polarized Lenses
- New, High-Definition 1.2 Megahertz Active Imaging ™ HD Ready Transducer
- New, High-Resolution ActiveTarget ® 2 Live Sonar Ready
- FishReveal ™ With New SideScan View*, As Well As Downscan
- Preloaded C-MAP ® DISCOVER Onboard Charts With 1-Foot Contours On 19,000+ US Lakes, 9,400+ Canadian Lakes
- Real-Time Mapping Available With C-MAP ® Genesis Live
- Large Programmable Keys
- Support For New ActiveTarget ® Scout And Ghost ® Trolling Motor 360 Chart Overlay Views
- Touchscreen Control Of Power-Pole ® Anchors, Ghost ® Trolling Motor, Autopilot And Lowrance Outboard Pilot
- Limited 1 Year Warranty
Product Description

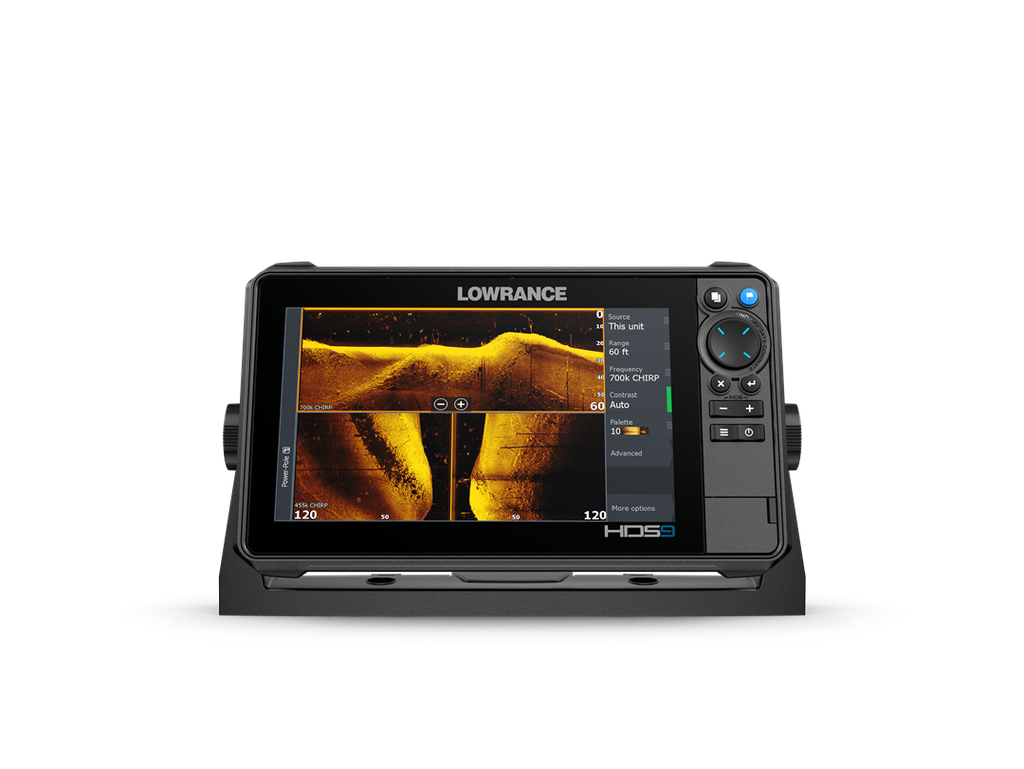

See more and catch more with the new HDS PRO fishfinder/chartplotter. Watch fish react to your lure live with support for new, high-resolution ActiveTarget (R) 2 Live Sonar Transducer, and find fish and holding structure with new, ultra high-definition Active Imaging ™ HD. Quickly locate prime fishing areas with preloaded C-MAP (R) DISCOVER Onboard charts and get full fishing system networking with expanded boat control from bow to stern.
For product documentation and manuals visit here:
