Attributes
- Display Size: 16 Inch LCD
- Display Resolution: 1920 X 1080 Pixels
- Sonar Compatibility: Active-Imaging 3-In-1 Sonar (CHIRP/SideScan/DownScan)
- With Built-In GPS: Yes
- Mount Type: Dash Flush Mount/ Gimbal Bracket Mount
- With Transducer: Yes
- Used To: To Find Fish, Mark And Return To Hot Spots, Docks And Ramps
- Interface: Touchscreen
- Waterproof: IPX7 Rating Waterproof
- Power Supply Voltage: 12 Volt
- Weight: 7.94 Pound
- Screen Brightness: 1200 Nits
- Viewing Angle: 80 Degree Top/ Bottom, 80 Degree Left/ Right
- SD Card Storage: Micro SD Card
- Fuse Rating: 6.5 Amp
- Operating Temperature Range: 5 To 131 Degree Fahrenheit
- Compass Safe: 12 Inch
- Cartography Included: C-MAP US Enhanced Basemap (AMER Models), C-MAP World Background (Row Models), Navionics Basemap
Features & Benefits
- Fish Are Easier To Find And Easier To Identify With FishReveal, Which Combines On One Screen The Proven Performance Of Lowrance Chirp Sonar
- Full High-Definition SolarMAX ™ HD IPS Touchscreen Viewable At Extreme Angles And Through Polarized Lenses, Supports Six-Panel Split-Screen
- High-Resolution ActiveTarget ™ Live Sonar Ready
- Active Imaging ™ 3-In-1 Ready Lowrance CHIRP, SideScan And DownScan Imaging
- Features StructureScan ® 3D ready
- Larger Programmable Keys
- Touchscreen Control Of Power-Pole ® Anchors, Lowrance Outboard Pilot And Ghost ® Trolling Motor
- NMEA 2000 ®, Wireless, Bluetooth ® And LiveCast Connectivity Plus Smartphone Notifications
- Limited 1 Year Warranty
Product Description

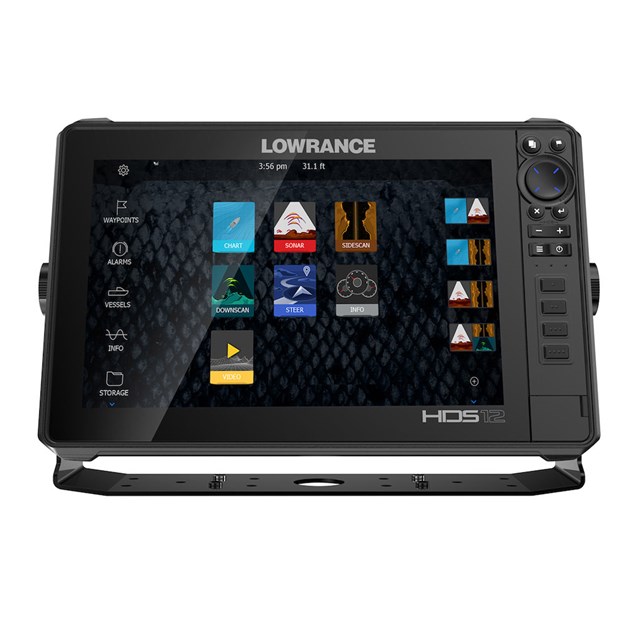

Rig your boat with an HDS LIVE 12 and get access to the full lineup of Lowrance (R) fish-finding technology including preloaded C-MAP (R) Contour Plus mapping and integrated support for high-resolution ActiveTarget ™ Live Sonar, Active Imaging ™ 3-in-1 with Lowrance CHIRP, SideScan/DownScan Imaging ™, FishReveal ™ and the Ghost (R) Trolling Motor.
