Attributes
- Max Boat Size: 79,000 lbs (36,000 kg)
- Stroke: 11.8 in (300 mm)
- Hard Over Time: 13 sec
- Tiller Arm: 10.11 in (257 mm)
- Thrust: 2425 lbs (1100 kg)
- Rudder Torque: 623.9 lbs (283 kg)
- Required Computer: AC42/NAC-3 - 3/H5000
- Input Voltage: 12 Volt
Features & Benefits
- High Power, Efficient Drive Unit For Maximum Power With Minimum Consumption
- Ram Drives Allow The Power Steer Mode On The Pilot To Be Used In Cases Of Manual Steering Failure

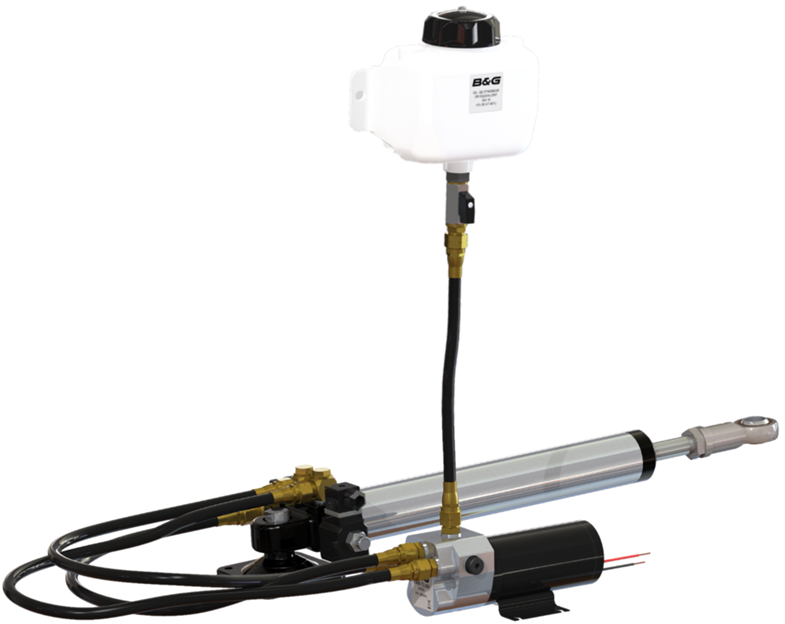

- T3 Drives Have A Separate Hydraulic Pump To Allow For Greater Mounting Flexibility On This Larger Cylinder
- Max Boat Size: 79,000 Pound
- Limited 1 Year Warranty
Product Description

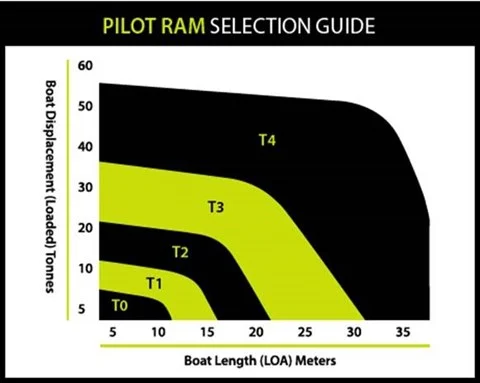

T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder Always remember to use the fully laden displacement of your boat when selecting a pilot.Typically a yacht fully provisioned with the water and fuel tanks full, can be as much as 20% above the designed displacement. If your boat falls between two pilot types, choose the larger pilot type - an under rated pilot may not be able to perform adequately when you need it most.
